| Ask Lasest Price | |
| Brand Name : | Forimi |
| Certification : | CE, ISO, FDA |
| Model Number : | FMY-I,FMY-II |
| Price : | USD 6500-13000 |
| Delivery Time : | within 5 working days |
| Payment Terms : | TT; Western Union; PayPal |
| Supply Ability : | 300 units per month |
Beijing Forimi machine q switched yag laser types of tattoo removal options
Technology parameter
| Laser type | Q-swiched ND YAG |
| Wavelength | 1064nm/532nm |
| Laser output method | Pulse electro-optic adjusting Q |
| Pulse Duration | 8ns±2ns |
| Output energy(generator) | 400~800mj(single),1000~1200mj(double) |
| Spot diameter | 1-9mm adjustable |
| Guiding beam arm | Seven-joints articulated arm |
| Pulse rate | 1-10Hz |
| Aiming beam | 650nm red diode laser |
| Input voltage | AC220v,AC110v |
| Cooling system | Water cooling+wind cooling |
| Input power | 1200W |
| Net weight | 80kg |
| Dimension(cm) | 80*40*110cm |

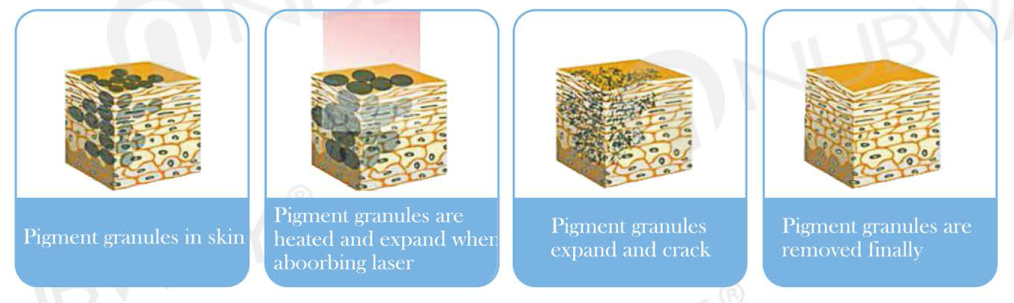

Principle of the treatment
Feaatures and system
Environmental conditions
1. Temperature: 10℃~30℃
2. Relative humidity: ≤75%,Air pressure: 860-1060hpa,Power requirement: AC 220v±10％;50Hz±2%, Water: Distilled water
Laser Skin-care System
Pigmented lesion: Yiteng lentigines, Taitian Lentiines, freckles,
eyebrow tattoo, body tattoo, lips tattoo.Vascular lesion: Pigment
with red, brown, blue and black; vascular expanding
Pretreatment preparation
Make sure whether the clients’ skin is keloid skin, and learn whether they have purified their eyebrows, pigment with other means.
Explain to clientele that after riding of pigment still having pigment trace left which previously caused by sunburn.
Let clientele know that even after riding of the black and blue pigments still having brown and red left for the presence of composite painting material.
Better shave the client’s eyebrow for easy operating before the treatment.
Advantage
Components of the Unit Description
LCD screen :Show the work status and adjustable specifications.
Handrail :Protect the main body and move the machine in short
distance.
Key switch :Turn on or turn off the system.
Emergency shut-off Knob:Turn off the system on emergency.
Joints arm:Transfer the light to the target area.
Transformer
Power supply socket :Connect with the power supply line plug.
Pedal switch socket :Connect with the pedal switch.
Foot Pedal: Control the output of laser emittance.
Environment requirement of installation and operation
The room should be clean and no dirty
Air conditioner, Voltage transformer and dust collector is
necessary.
Transportation of the Device
The power supply, laser generator and joints arm should be paced
separately with original shock proof package supplied by the
manufacturer. Installation is only allowed on place by professional
technician.
Installation of the system
Installation is only allowed on place by professional technician.
After installation finished, The technician must adjust and
calibrate the display error, the exactness of the cursor, the
diameter of the spot size, the single pulse energy and power
supply.
|
|
